TSL-68 三色信号灯
Series : Industrial Audio Visual Warning Equipment
名称 : TSL-68 三色信号灯
name : TSL-68 Three Colors Signal Light With Buzzer
Click : 6965

Model

TSL-68

Features

High brightness signal stack light light and powerful buzzer integrated.



Multi red,yellow,green colors lighting in one lamp.



Compact design folding frame meet different application.



Suitable to transmit audio & visual signal for remote surveiliance equipment,manless information system,high grade parking equipment,and other automation systems.



External control available,useful to trigger alarm by remote device,such as push button or relay switch.



Various types of brackets for selection,easy to change color combination.

Lighting Type

LED Flashing

Operation Voltage

DC12V,DC24V,AC110V,AC220V

Sound Pressure

Max.90dB/m (Volume justified available)

Alarm Tone

Pi-Pi-Pi Short Interval

(special sound customer made available)

Control Type

External remote contact control

Material

Lampshade:PC;

Housing:ABS;

Polo:Al

Protection Class

IP54

Operation Temperature

-30℃~+40

Weight

0.16Kg

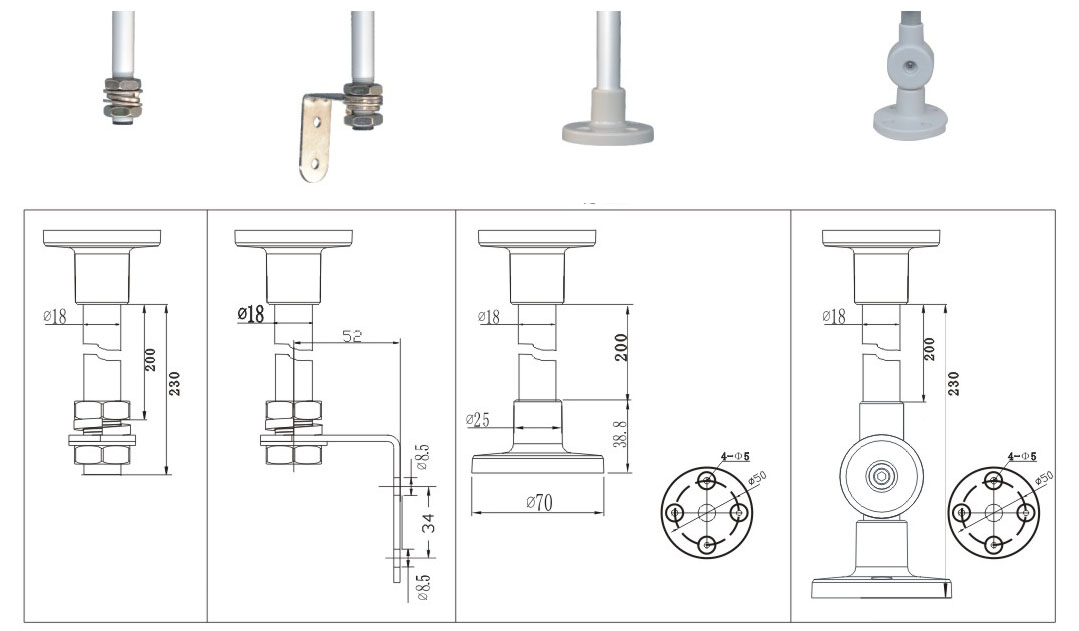

Measurement

Diagram
