Model

HDSLD-135R

HDSLD-135L

HDSLD-135S

Features

Heavy-duty product with high brightness warning light and double powerful horns integrated.



Aluminium housing product of excellent durability and anti-corrosion.Protection cage equipped.Suitable for crane,marine equipment,mine industry and other outdoor application.

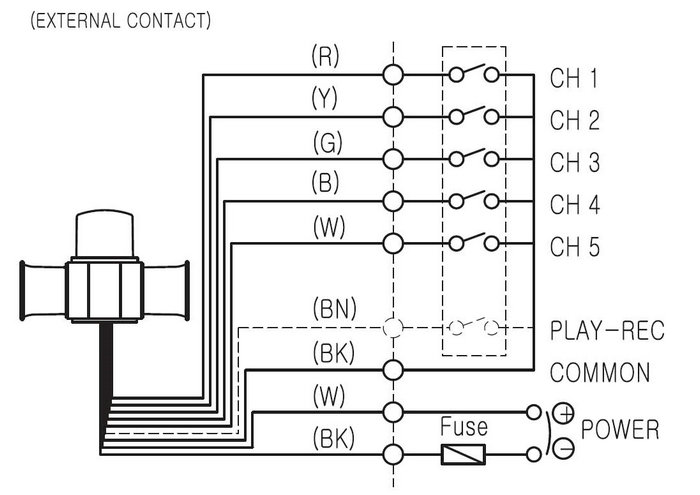

External control available,useful to trigger alarm by remote device,such as push button or reply switch.

Lighting Type

Bulb Revolving

Control RPM by Built-in controller.

Revolving Speed: 120~140RPM

LED Flashing

Suitable for place where bulb replacement is difficult

Xenon Lamp Strobe

Suitable for place visibility is poor or with dust or fog permanently exists

Operation Voltage

DC12V,DC24V,AC110V,AC220V,AC380V

Sound Pressure

Max.120dB/m×2 (Volume justified available)

Alarm Tone

5 tones below selected by internal switch,with 5 signal and 1 common cables to realize remote control.

1.Fire Alarm

2.Security

3.First-Aid

4.Pi-Pi-Pi Short Interval

5.Pi-Continuous

6.Emergency

7.General Alarm(Long PI after 7 Short)

8.Rapid Beeps

9.Marine Horn

10.Motor Siren

11.Guard

12.Beep-Beep

Control Type

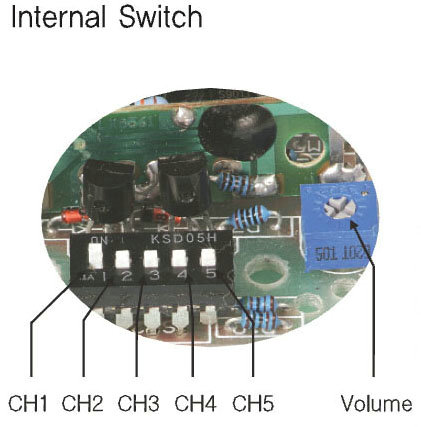

Internal Switch Alarm Tone Select / External Remote Contact Control

Material

Lampshade:PC;

Housing:DIECAST Al;

Horn Housing: SUS316L;

Protection Cage:SUS316L;

Protection Class

IP66

Operation Temperature

-50℃～+70℃

Weight

4.5 Kg

Measurement

Diagram
